Wood Chipper(Drum Type) Introduction
Wood Chipper(Drum Type) is a machine used for crushing wood, generally tree logs or branches, into smaller woodchips. They are often portable, being mounted on wheels on frame suitable for various working environment. There are two kinds of wood chipper according to structure design: disc-type wood chipper and drum-type wood chipper. Disc wood chipper is usually used in papermaking industries for it’s mainly process wood logs, while drum wood chipper can process both wood logs and agro stalks in various size.
Material Mastery
-
Wood slab
-
Wood
-
Waste wood board
-
Branch
-
Bamboo
-
Wood pallet

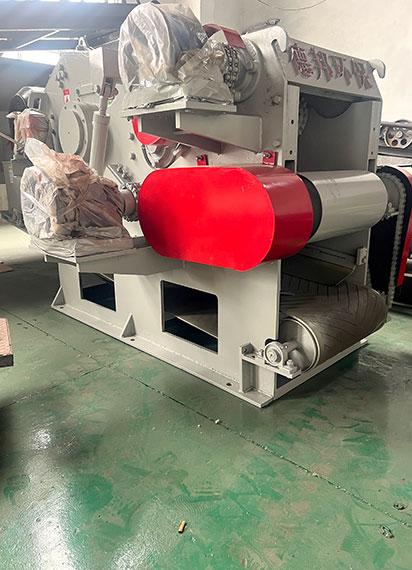

Wood Chipper(Drum Type) Gallery
Wood Chipper(Drum Type) Features
Wood logs with max diameter from 25-35 cm can be processed smoothly.
Processed chips length can be freely adjusted.
Equipped with 2 blades, the chipper can guarantee an efficient working procedure.
Wear-resistant material for mat, high quality steel for dead knife and blades.
Drum wood chippers can process both wood material and agro stalks.
Wood Chipper(Drum Type) Technical Specifications
| Model | DB-G215 | DB-G216 | DB-G218 | DB-G2113 |
| Main motor power（kw） | 45 | 55 | 90-110 | 200-250 |
| Capacity（t/h） | 3～4 | 7～8 | 12～15 | 15～30 |
| Input size（mm） | 160x400 | 230x500 | 300x680 | 450x700 |
| Number of blades（pcs） | 2 | 2 | 2 | 2 |
| Max diam of raw materials（mm） | 160 | 160 | 230 | 450 |
| Roller speed（r/min） | 592 | 590 | 650 | 500 |
| Output size（mm） | 30 | 30 | 30 | 38 |
| Feeding roller motor power（kw） | 2.2-3 | 2.2-3 | 4-5 | 7.5x2 |
| Oil pump motor power（kw） | 1.5x1 | 1.5x1 | 1.5x1 | 3x1 |
| Weight（kg） | 2990 | 4070 | 7000 | 11840 |
| Dimension(mm) | 1470x1550x970 | 1800x1900x1210 | 2200x2150x1500 | 3670x2517x2050 |
| Conveyor motor power（kw） | 3 | 3 | 3 | 3 |
Note: Technical specifications may change without notice due to ongoing technological advancements.
