Vertical Ring Die Wood Pellet Machine Introduction
Ring die pellet mill is generally large wood pellet production equipment because of its large capacity as compared to small flat die pellet mill. It is usually used for industrial or commercial biomass pellet production. For example, investors who want to make pellets for sale or demand for large quantity biomass pellets would prefer to buy ring die pellet mill to build a complete biomass pellet plant.
Material Mastery
-
EFB
-
Bambo
-
Sawdust
-
Straw
-
Shell
-
Wood

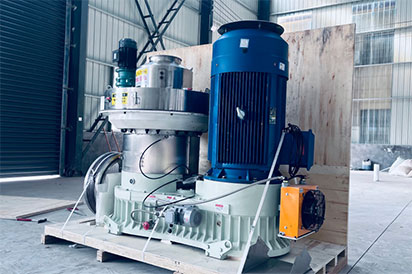

Vertical Ring Die Wood Pellet Machine Gallery
Vertical Ring Die Wood Pellet Machine Features
Longer service life, lower power consumption, high capacity and products with better quality.
Compared to the traditional wood pellet machine, vertically feeding and the rotating rollers of this pellet mill can prevent accumulation of raw material.
Cooling device in the vertical ring die pellet machine can avoid the problem of heat dissipation of traditional pellet machine.
Service life of this pellet making machine is prolonged by 5-7times because the key parts are made of superior alloy steel with heat treatment by German vacuum furnace
According to your demand, the length of pellets can be adjusted easily.
Vertical Ring Die Wood Pellet Machine Technical Specifications
Model | Capacity(t/h) | Power(kw) | Pellet Diameter(mm) | Dimension(m) |
DB-H450 | 0.5-0.6 | 55 | φ6～φ12 | 1.8×1×1.78 |
DB-H470 | 0.6-1 | 75 | φ6～φ12 | 1.8×1.1×1.78 |
DB-H560 | 1-1.2 | 90 | φ6～φ12 | 2.35×1.5×1.85 |
DB-H580 | 1.5-1.8 | 110 | φ6～φ12 | 2.45×1.6×1.85 |
DB-H650 | 1.8-2 | 132 | φ6～φ12 | 2.55×1.7×1.85 |
DB-H700 | 2.5-2.8 | 160 | φ6～φ12 | 2.8×1.8×1.95 |
DB-H750 | 2.8-3 | 185 | φ6～φ12 | 2.9×1.85×2 |
DB-H850 | 3-3.5 | 250 | φ6～φ12 | 3.2×2.2×2.5 |
Note: Technical specifications may change without notice due to ongoing technological advancements.
